Product introduction
The 6YL-218 is the largest screw press in the range, with a capacity of 600–800 kg/h. It is a hot and cold dual-purpose automatic press driven by a 45 kW main motor.
It is supplied for high-throughput pressing workshops and for the pre-pressing stage of larger extraction plants.
Technical parameters
| Parameter | Value |
|---|---|
| Capacity | 600 – 800 kg/h |
| Voltage | 380 V |
| Heating power | — |
| Screw speed | 42 r/min |
| Main motor | 45.0 kW |
| Vacuum pump | 3.0 kW |
| Dimensions (L×W×H) | 3000 × 2100 × 2070 mm |
| Weight | 3000 kg |
Applications
Suitable for continuous pressing of:
- Oilseeds — soybean, cottonseed, peanut, sesame, rapeseed, sunflower seed, walnut kernel, corn germ, flax
- Workshops — village and township oil mills, small and medium oil plants, pilot and laboratory lines
- Lines — can be combined with a vibrating screen, an electrically heated wok and an oil filter into a complete pressing line
Working process
- 1. Cleaning — vibrating screen removes stones, sand and impurities
- 2. Crushing and conditioning — oil crusher and electrically heated wok bring the seed to pressing temperature
- 3. Pressing — the screw press extracts the crude oil and discharges the press cake
- 4. Filtration — oil purifier or plate and frame filter removes fines from the crude oil
- 5. Packing — oil is packed or transferred for further refining; cake is bagged

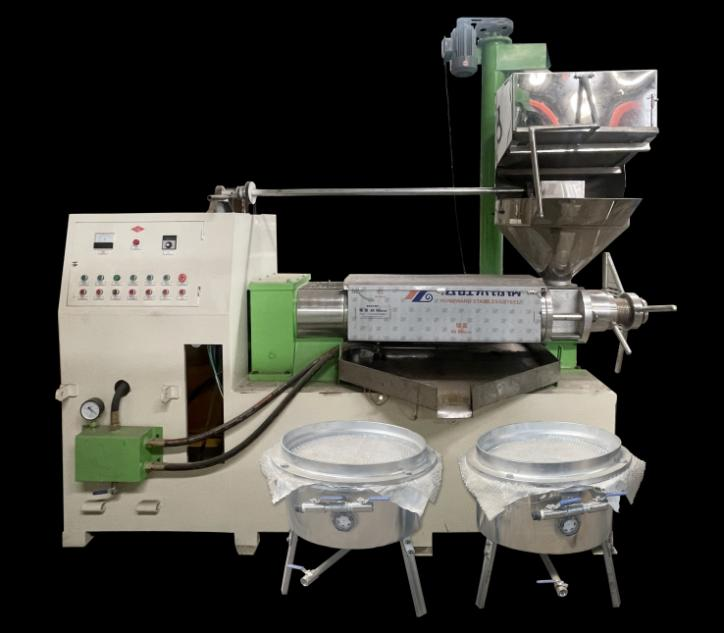

Machine photos
Related equipment
Machines commonly supplied with this model:
- Vibrating screening machine — 500–800 kg/h, 1.5 kW
- Electrically heated wok — types 50 to 1000, 75–1500 kg/h
- Centrifugal oil purifier — models LY-40 to LY-80
- Plate and frame filter — 300–600 kg/h
- Screw loader — 2 m, 2.5 m and 3 m
FAQ
- What is the capacity of this model?
600 – 800 kg/h of oilseed input. - What raw materials can it press?
soybean, cottonseed, peanut, sesame, rapeseed, sunflower seed, walnut kernel, corn germ and flax. - What power supply is required?
380 V three-phase; main motor 45.0 kW. - Can it be supplied as part of a complete line?
Yes. A complete pressing line is normally made up of a screening machine, a heating wok, the press, a filter and conveying equipment.
Get a quote
Tell us your raw material and required capacity and we will confirm the model, the line configuration and the price.
